Technical Specifications:

Active Loudspeaker
1" Tweeter - 80w
12" Woofer - 500w
Frequency Response 30Hz-20kHz
Crossover at 700Hz or 800Hz depending on the horn model.
Biamped with an integrated DSP
Dimensions 36x36x30 cm.




All Arda speakers are made to order.

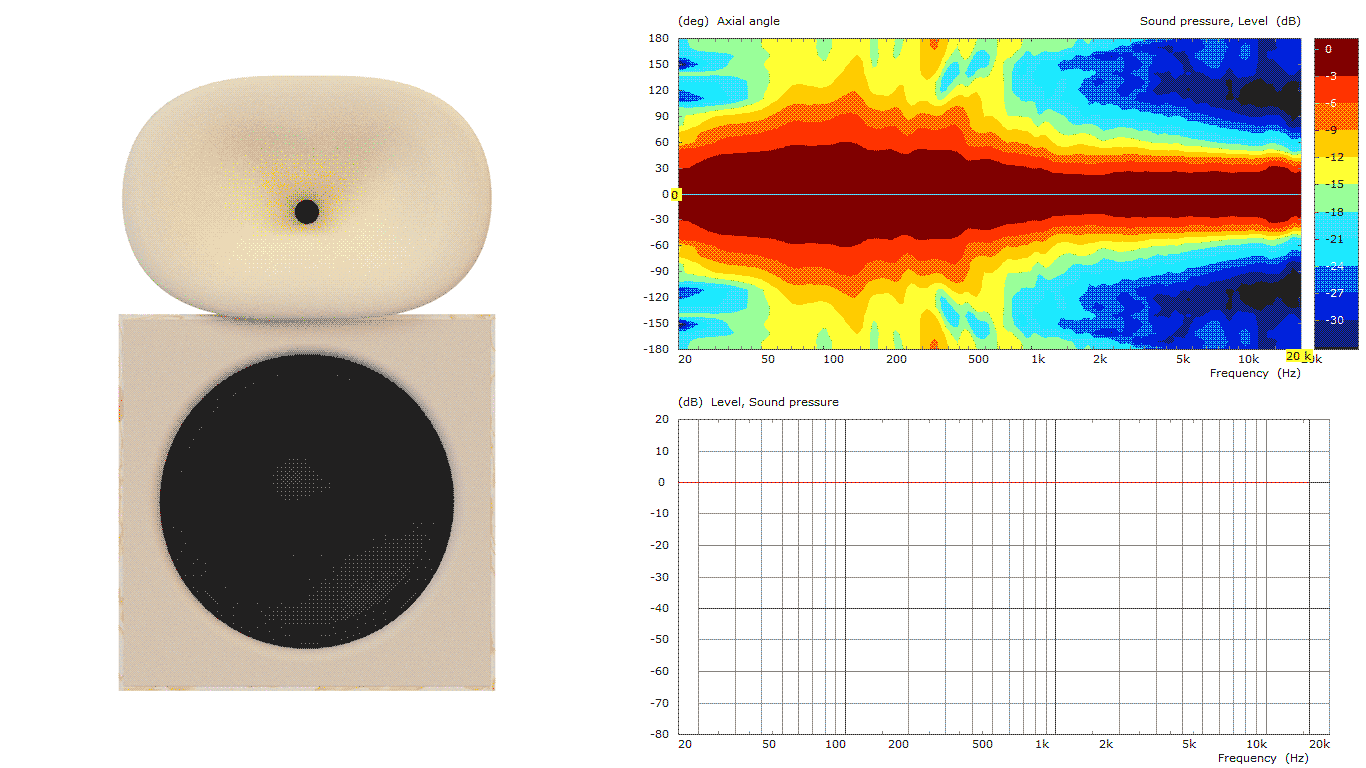

The midsize speakers are available in Cardioid or Bass reflex configuration.
The Cardioid has resistive ports on the sides, the Bass Reflex has normal ports in the back.

More information about the speaker types (click)



Lead time is about 1 month.
Custom designs and colors available on request.

Horns are 3D printed in recycled PLA, PETG
or machined out of cork or wood.
Woofer boxes are made of 15mm fir plywood unless specified.
Custom boxes available in Douglas Fir, Ash or Oak.
